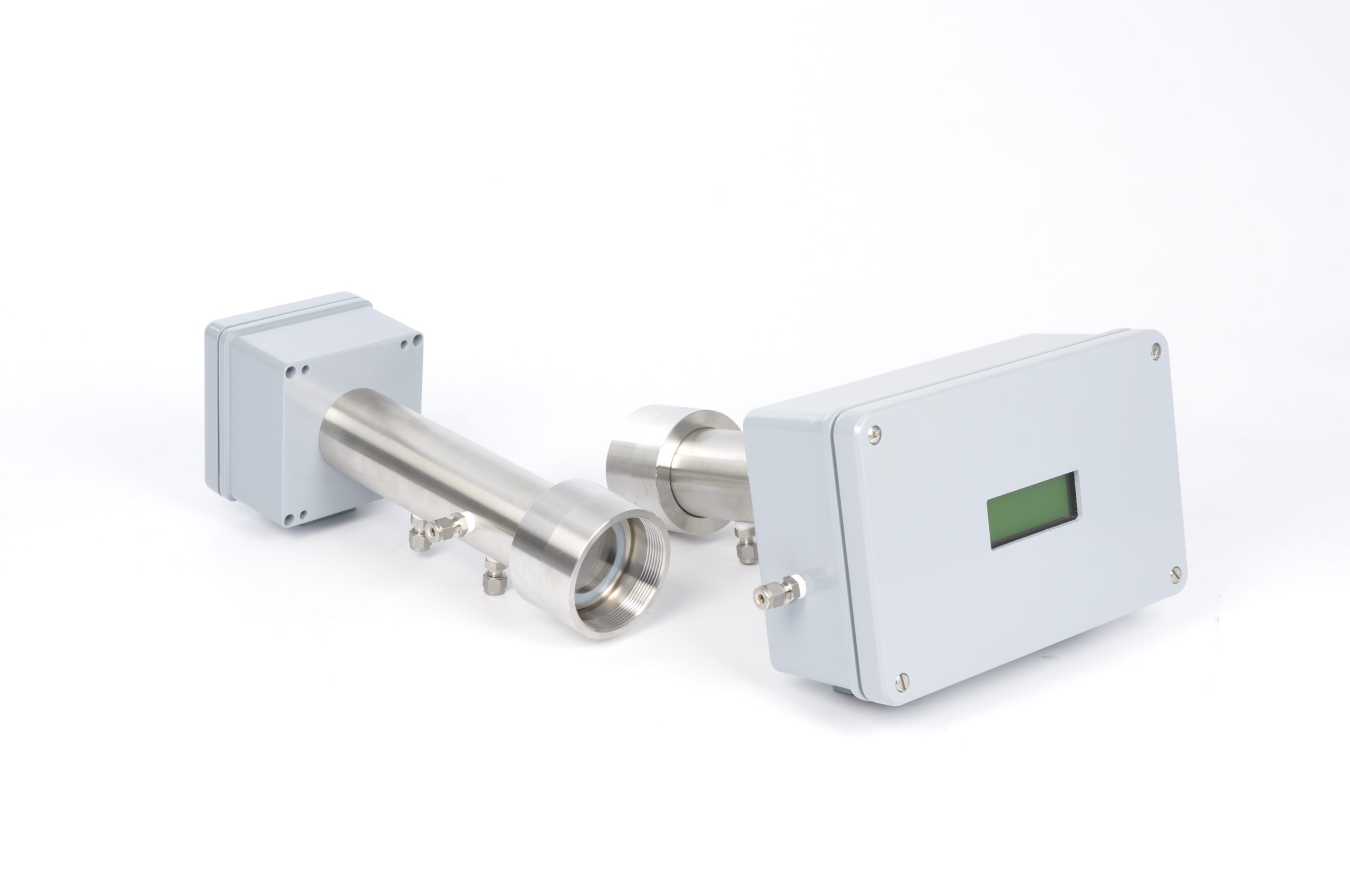

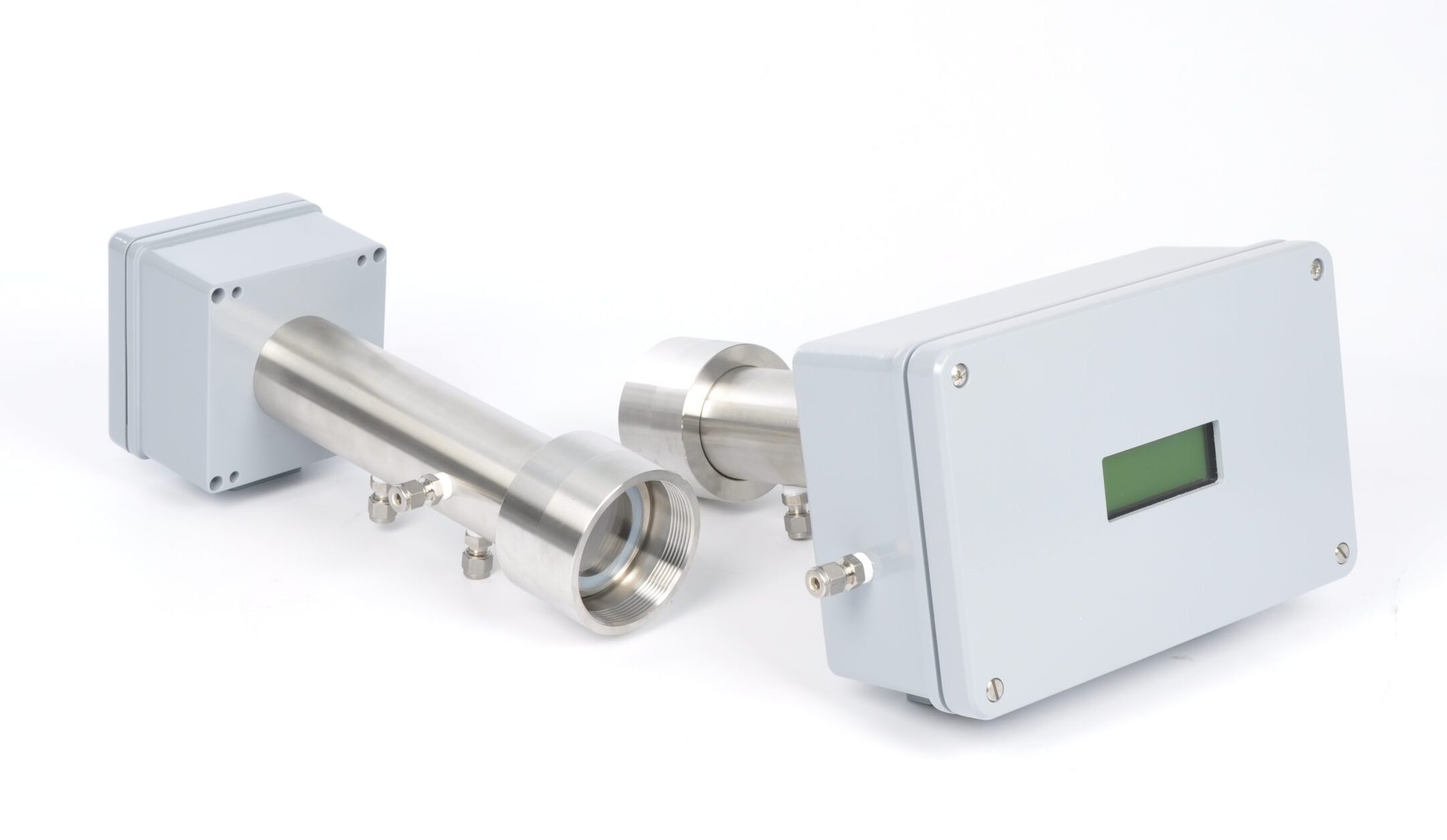

LaserGas™ II SP

Fast response time
Wide variety of gases and applications
Well proven and robust design

Description

LaserGas™ II Single Path is a contactless (in-situ) optical TDLAS analyzer, designed to measure a wide selection of gases even in challenging process conditions, including dual gas measurements.

Laser Gas™ II SP has also a wide range of Ex-certifications, including IECEx, ATEX, UKEx & CSA.

With no requirement for high maintenance, extractive sample conditioning systems, measurement availability is greatly enhanced by eliminating sample handling errors. Once power, data lines and purge gas are connected, the instrument is ready to use, with measurements performed in real-time.

Features
- Response time down to 1 second
- No gas sampling: in-situ measurement
- Contactless measurement
- No interference from background gases
- Applicable for many process conditions:
  – high/low temperature
  – high dust
  – corrosive gases
- Line-of-sight measurement, integral concentration over the full stack diameter
- ATEX/IECEx/UKEx and CSA certified
- TÜV, MCERTS, GOST approved technology for a range of gas emission measurements
- Integrated span check option available
- Suitable for harsh environments
- No zero drift
- Stable calibration
- Long path lengths
Customer benefits
- In-situ monitoring
- Highly reliable real-time analyzer
- Low maintenance cost
- Reduce emission to the environment
- Easy to install and operate
- Reduce daily operation costs
- Optimize process
- Well proven measurement technique
- Tailor made to your process
Certifications & approvals
- IECEx/ATEX/UKEx Zone 1
- IECEx/ATEX/UKEx Zone 2
- CSA Class I/Div 2 A,B,C,D
- TÜV (QAL 1 for HCl and NH3 and HF, HCl and NH3 possible in combination with H2O)
- MCERTS for HF, HCl+H2O and NH3+H2O
- EURO VI for NH3
Gases
- CH4
- CO %
- CO ppm
- CO+CO2
- CO+H2O
- CO+CH4
- CO+temp.
- CO2 %
- CO2 ppm
- H2O %
- H2S
- H2S + CO2
- HCl
- HCl+H2O
- HCl + CH4
- HCl in VCM
- HCN
- HCN + NH3
- HF
- HF + H2O
- N2O %
- N2O ppm
- NH3
- NH3+H2O
- NO
- NO2
- O2
- O2+temp
- C2H2
- C2H4
- C2H3Cl
- C2H4O
- C3H6
- CH2O
- CH3I
- COS
- C3H3N
- CH2Cl2
Applications
- Chemical industry
- Petrochemical industry
- Metal industry
- Power plants
- Waste incinerators
- Cement industry
- Automotive industry
- Scrubber technology
- Glass industry
- PVC production
- Pulp and paper
- … and more
