LaserGas™ III SP

Compact design
Low detection limit
Flame proof enclosure

Description

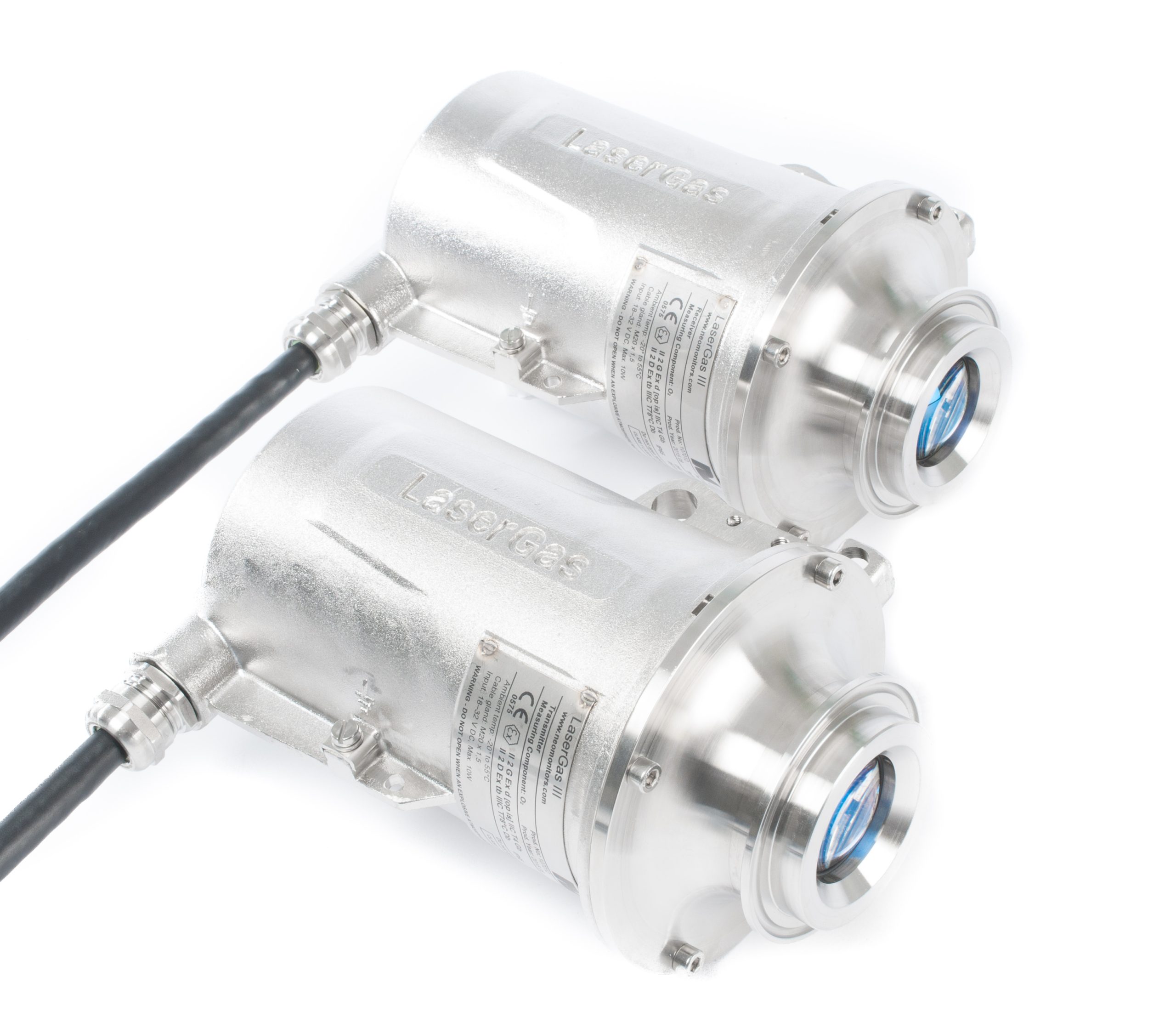

LaserGas™ III SP is our third generation in-situ analyzer, designed for safety applications, incorporating Ex-d enclosures, with a focus on SIL-applications. Utilizing a compact design, allowing ease of installation, the analyzers sealed housings eliminates the need for instrument purging. The instrument does not require regular maintenance.

The monitor is mounted directly onto flanges across the process pipe or stack, removing the requirement for high maintenance sample conditioning systems. The analyzer includes purge gas connections and an adjustment mechanism for easy initial alignment. Continuous purge flow prevents dust and other contamination from settling on the optical windows. Simply connect power and data lines and measurements are made available in real-time.

Features
- In-situ real time measurements
- Fast response time
- Compact design
- Low power consumption (< 10W)
- TDLAS technology
- Low detection limit
- No interference from other gases
- Automatic gain
- Lifetime calibration, no zero drift
- Integrated span check
- Ethernet connectivity
- SIL2 capability
Customer benefits
- Process optimization
- Simple installation, ease of use
- Low maintenance cost
- No consumables
- No sampling systems
- No regular calibrations needed
- Automatic span check available for certain gases
- SIL2 capability
Certification & approvals
- IECEx/ATEX/UKEx Zone 1
- CSA Class I/Div 2 B,C,D
- IEC 61508 certified SIL2 capability
Gases
- NH3
- O2
- O2 + temp
- CO
- CO + CH4
- H2
Applications
- Refineries
- Furnaces
- Boilers
- Safety applications
- Powerplants
- Chemical industries
- Petrochemical industries
- Steel industries
