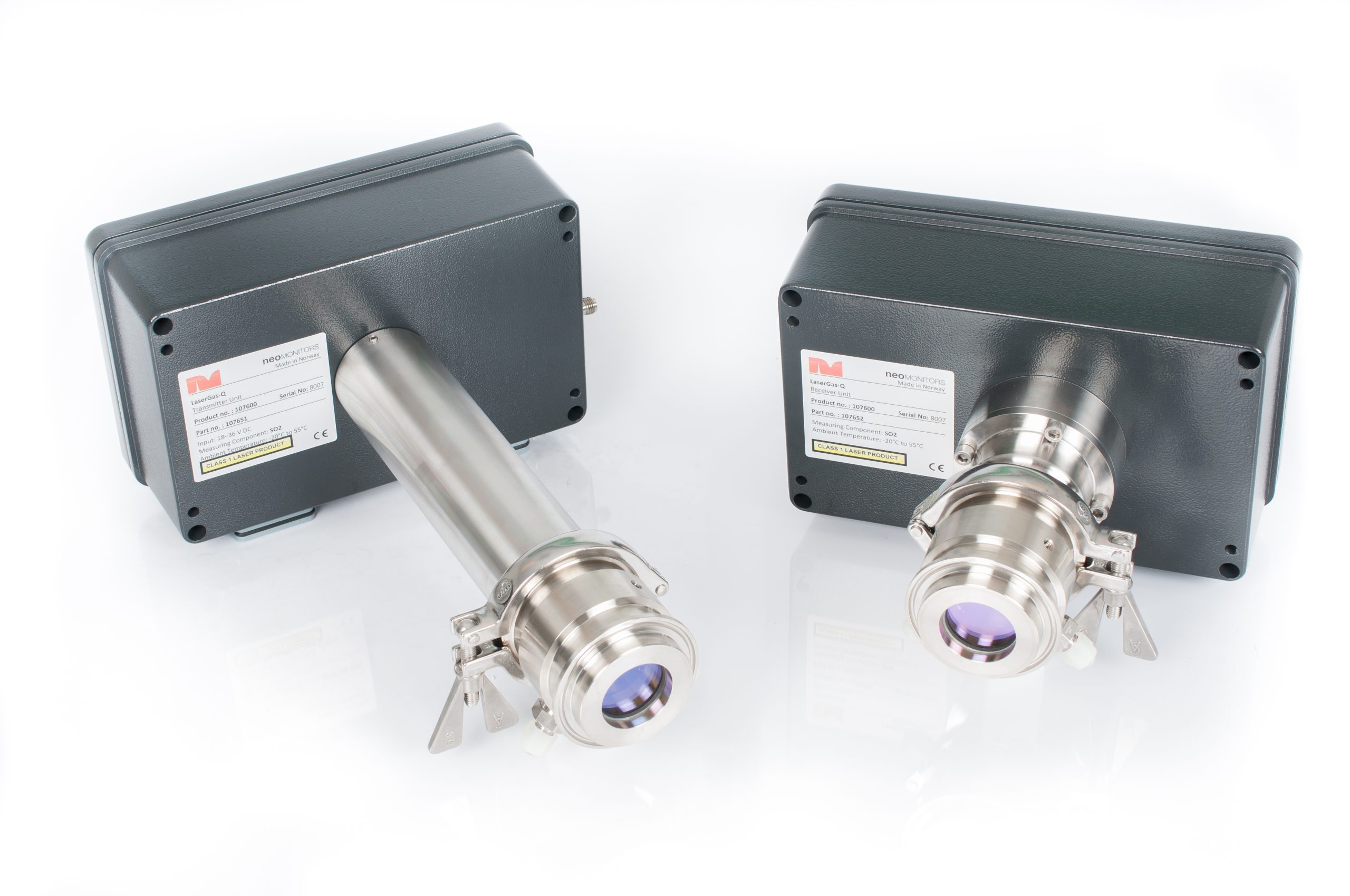

LaserGas™ Q ICL

Fast response time
Stable calibration
Suitable for very high dust load

Description

While sharing similarities with the LaserGas™ II SP analyzer, the LaserGas™ Q (ICL) measures gases at mid-infrared spectral wavelengths, allowing for even lower detection limits, while also enabling the detection of gases not possible with lasers operating at near-infrared wavelengths.

The analyzer has low operating costs and does not require regular maintenance. By mounting directly on the process pipe, high maintenance extractive sample conditioning systems are avoided, increasing reliability and availability of the measurement and reducing costs.

The monitor is mounted directly onto flanges, which include purge gas connections and an alignment mechanism for easy initial alignment. Continuous purge flow prevents dust and other contamination from settling on the optical windows. Once power and data lines are connected, measurements are available in real-time.

Features
- Response time down to 1 second
- No gas sampling: in-situ measurement
- No interference from background gases
- In-line measurement, integral concentration over the full stack diameter
- Suitable for harsh environment
- No zero drift
- Stable calibration
Customer benefits
- In-situ monitoring
- Highly reliable real-time analyzer
- Low maintenance cost
- Reduce emission to the environment
- Easy to install and operate
- Reduce daily operation costs
- Optimize process
- Well-proven measurement technique
Certification and approvals
- IECEx/ATEX/UKEx Zone 2
- CSA Class I/Div 2 A,B,C,D
Gases
- NO
- NO2
- SO2
- HBr
- CH2O
Applications
- Combustion process
- DeNOx
- SRU
- SAR
- CEMS
