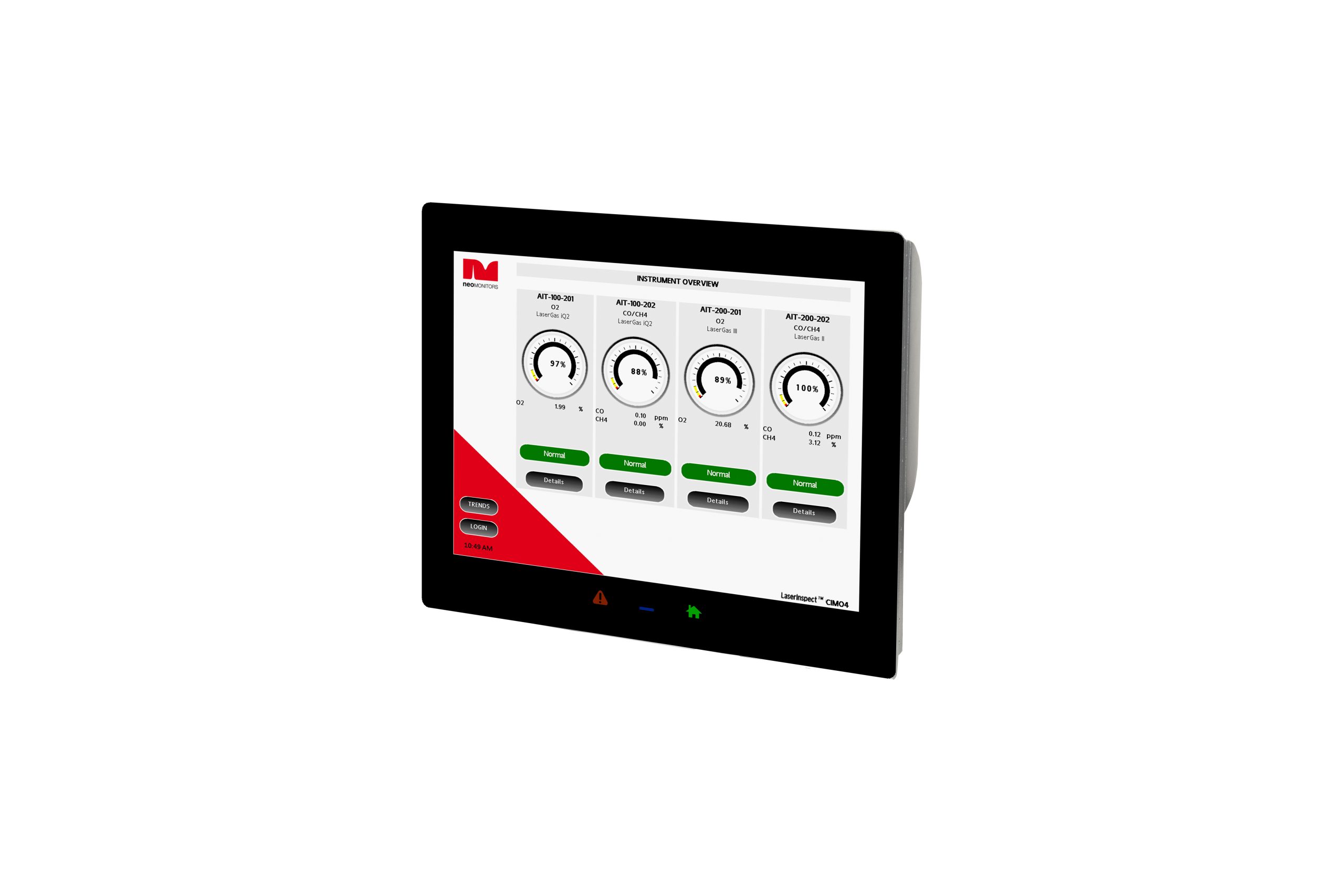

LaserInspect™ CIMO4
- All-in-one control panel for the LaserGas™ family
- Sleek full-color touchscreen
- 15” with narrow tablet-style bezels
Description
NEO Monitors’ LaserInspect™ CIMO4 gives the operator the opportunity to remotely operate up to 4 LaserGas™ analyzers from the same display*. The operator has full status overview in an instance of all instruments and is able to perform maintenance tasks directly from the panel. This HMI is designed for the NEO Monitors LaserGas™ family and can easily be integrated into a cabinet.
* Separate Ethernet switch is required to operate multiple analyzers
-
Certification & approvals
RoHS Compliant
ATEX Approved
- II 3 G Ex ic nA IIC T4 Gc
- II 3 D Ex tc IIIC T135°C Dc
- DEMKO 14 ATEX 1387X
- EN 60079-0, -11, -15, -31
IECEx Approved
- Ex ic nA IIC T4 Gc
- Ex tc IIIC T135°C Dc
- IECEx UL 15.0035X
- IEC 60079-0, -11, -15, -31
CE Approved
- EN 61326-1 Immunity to industrial locations emission CISPR 11 Class A
- IEC/EN 61010-1
UL Approved
- cULus listed for ordinary location: File #E302106
- UL 61010-1, -2-201
- cULus listed for hazardous location: File #E317425
- Class I, Division 2, Groups A, B, C and D
- Class II, Division 2, Groups F and G
- Class III, Division 2
- ANSI/ISA 12.12.01, C22.2 No. 213-M1987, 157-92
Type 4X IP66 enclosure rating (face only) ABS type approval for shipboard applications
-
Features & benefits
- Sleek full-color touchscreen
- 15” with narrow tablet-style bezels
- Expandable with up to 4 analyzers connected to one interface
- Span / Validation reading
- Touch screen with easy and intuitive navigation
- Easy way to check analyzer status
- All-in-one control panel for the LaserGas™ family
- Rugged design for industrial use
- Remote monitoring of instruments
- Control, Inspect, Monitor and keep Overview of up to 4 analyzers
-
Application
- BOF
- Boilers
- CEMS
- Chlorine production
- Clean gas
- COG
- Combustion control
- DeNOx
- DeSox
- EDC
- Electric ARC furnace
- FCCU
- Fence line monitoring
- Fertilizer (Urea)
- Flare Gas
- FTC / GTC in aluminium plants
- Greenhouse gases
- Incineration
- Natural gas
- Nuclear
- Pure gas
- Refinery heaters
- Safety
- SRU
- Syngas
- Tail Gas
- VCM
Datasheet
-
